2025 Can-Am® Defender MAX Lone Star HD10
Engine |
Engine Type |
Rotax®, V-twin |
Engine Power |
82 hp / 69 lb-ft |
Cooling System |
Liquid-cooled |
Displacement |
976 cc |
Fuel System |
Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI) |
Battery |
Battery |
12 V (30 A h) |
Drivetrain |
Drivetrain |
Selectable Turf Mode / 2WD / 4WD with exclusive Smart-Lok | Driving Assistance: CVT engine braking ECO™ / ECO™ Off / Work modes Speed limiter |
Transmission |
PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P |
Steering |
Power |
Dynamic Power Steering (DPS) |
Suspension |
Front Suspension |
Arched double A-arm with sway bar |
Front Travel (in./cm.) |
12 in. (30.5 cm) |
Front Shocks |
Twin tube gas charged shocks |
Rear Suspension |
Arched TTA with external sway bar |
Rear Travel (in./cm.) |
12 in. (30.5 cm) |
Rear Shocks |
Twin tube gas charged shocks |
Brakes |
Front braking system |
Dual 220 mm disc brakes with hydraulic twin-piston calipers |
Rear braking system |
Dual 220 mm disc brakes with hydraulic twin-piston calipers |
Wheels & Tires |
Wheels |
15 in. cast aluminum | Steering: Adjustable tilt steering |
Front Tire |
XPS Trac Force 30 x 9/10 x 15 in. |
Rear Tire |
XPS Trac Force 30 x 9/10 x 15 in. |
Dimensions |
Overall Vehicle Size (LxWxH) |
158.9 x 65 x 80.9 in. (403.6 x 165.1 x 228.5 cm) |
Wheelbase |
115.5 in. (294 cm) |
Ground Clearance |
14 in. (35.6 cm) |
Cargo Box |
38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm) |
Capacities |
Storage Capacity |
Total: 16.9 gal (63.9 L) |
Cargo Capacity |
Box: 1,000 lb (454 kg) / California only: 600 lb (272.2 kg) |
Towing Capacity |
2,500 lb (1,134 kg) |
Payload Capacity |
1,700 lb (771 kg) |
Fuel Capacity |
10.6 gal (40 L) |
Load Capacity, Land |
Tailgate: 250 lb (113.4 kg) |
Seating Capacity |
6 |
Weights |
Estimated Dry Weight (lbs./kgs.) |
1,977 lb (897 kg) |
Winch |
4,500 lb (2,041 kg) winch with roller fairlead |
Features |
Instrumentation |
DC outlet (10-A), USB Port (10-A) x 2 |
Cage Type |
Profiled cage ROPS approved |
Protection Plan |
Heavy-duty front steel bumper, HMWPE full skid plate, 2-piece full hard roof, Aluminum rock sliders |
Hitch/Type |
2 in. hitch receiver |
Magneto |
650 W |
Gauges |
7.6 in. wide digital display with keypad |

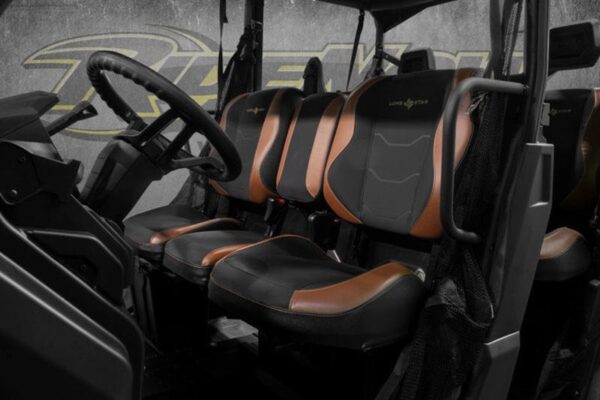

Seat Type |
Dual VERSA-PRO bolster bench seats with passenger seats flipping up, Adjustable driver seat, underside hooks, reinforced seat skin featuring Lone Star package trims |
Lights and Safety |
Lighting |
Front lighting output 140-W, LED tail lights |
Warranty |
Factory |
1-year BRP Limited warranty |
Extended |
B.E.S.T. term available up to 30 months |
