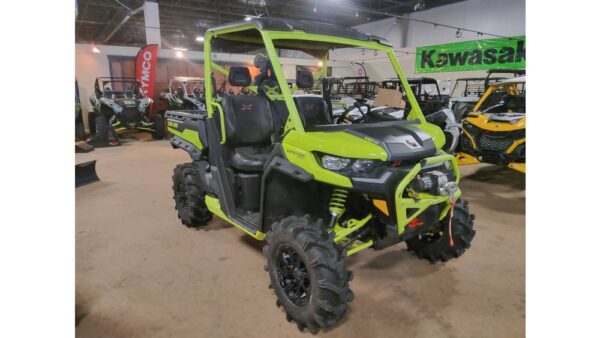

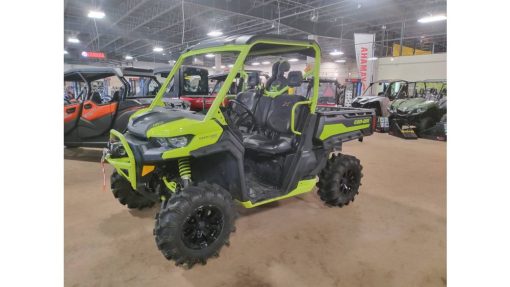

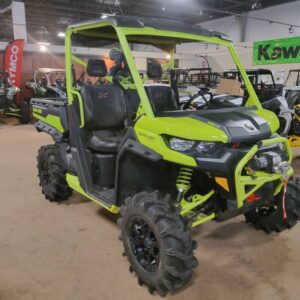

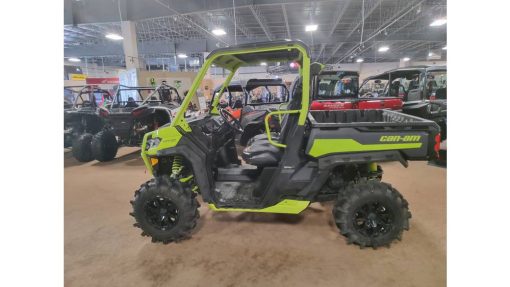

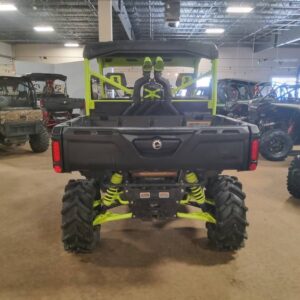

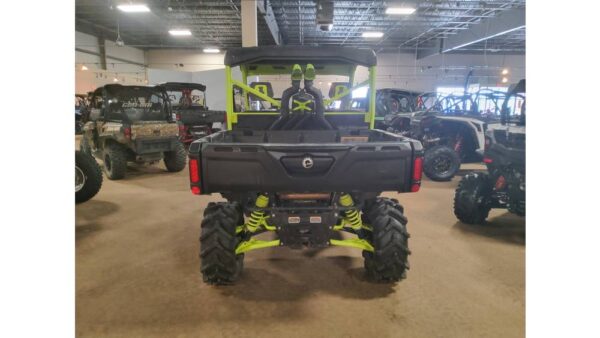

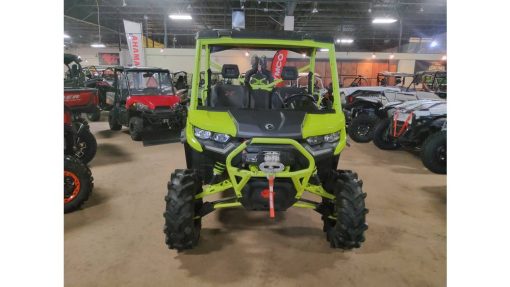

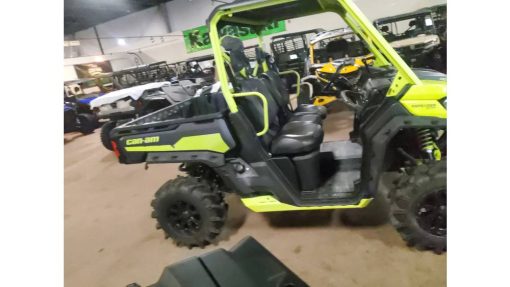

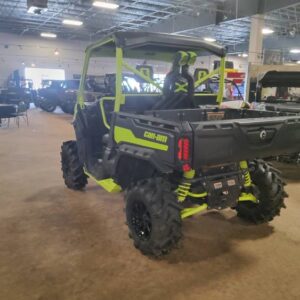

2021 Can-Am DEFENDER XMR HD10
Roll over image to zoom in
$13,999.00$14,999.00 (-7%)
Engine
| Engine Type | Rotax® V-twin |
| Displacement | 976 cc |
| Cooling | Liquid Cooling; strategically positioned engine air intake |
| Fuel System | Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI) |
Chassis
| Front Suspension | Arched double A-arm with sway bar |
| Front Brakes | Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers |
| Front Tire | ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm) |
| Rear Suspension | Arched TTA with external sway bar |
| Rear Brakes | Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers |
| Rear Tire | ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm) |
Dimensions
| Dry Weight | 1697.6 lb. (770 kg) |
| Wheelbase | 83 in. (211.5 cm) |
| Front Travel | 10 in. (25.4 cm) |
| Rear Travel | 10 in. (25.4 cm) |
| Ground Clearance | 15 in. (38.1 cm) |
| Fuel Capacity | 10.6 gal. (40 L) |
| Box Capacity | 1000 lb. (454 kg); 600 lb. (272.2 kg) (California only) |
| Towing Capacity | 2500 lb. (1134 kg) |
Transmission
| Transmission | RO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust, Extra-L / H / N / R / P |
| Drive System | Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok technology |
General
| Speedometer | Standard Digital |
| Tachometer | Standard Digital |
| Odometer | Standard Digital |
| Colors | Iron Grey / Manta Green |
| Warranty | Factory: 1-year BRP limited warranty; Extended Service Terms: B.E.S.T. terms available for up to 30 months |
Description
FORCE OF NATURE.
Torture-tested to dominate changeable conditions, this workhorse is mud-ready from winch to tail, including snorkeled intakes and 15 in. (38.1 cm) of ground clearance.
Engine
- Engine: HD10
- Engine displacement: 976
- Type: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake
- Fuel Delivery System: Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
- Transmission: PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust, Extra-L / H / N / R / P
- Drive Train: Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok technology. (Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry)
- Driving Assistance: Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
- Power Steering: Dynamic Power Steering (DPS)
Suspension
- Front Suspension: Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
- Front Shocks: Twin tube gas charged shocks
- Rear Suspension: Arched TTA with external sway bar / 10 in. (25.4 cm) travel
- Rear Shocks: Twin tube gas charged shocks
Tires/Wheels
- Front Tires: ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
- Rear Tires: ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
- Wheels: 14 in. (35.6 cm) cast-alumium
Brakes
- Front: Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
- Rear: Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
- Technology: Brake holding mechanism
Dimensions/Capacities
- L x W x H: 129.4 x 64 x 82 in. (328.6 x 162.6 x 208.3 cm)
- Wheel Base: 83 in. (211.5 cm)
- Ground Clearance: 15 in. (38.1 cm)
- Chassis Cage: Profiled cage. ROPS approved
- Dry Weight: 1,697.6 lb (770 kg)

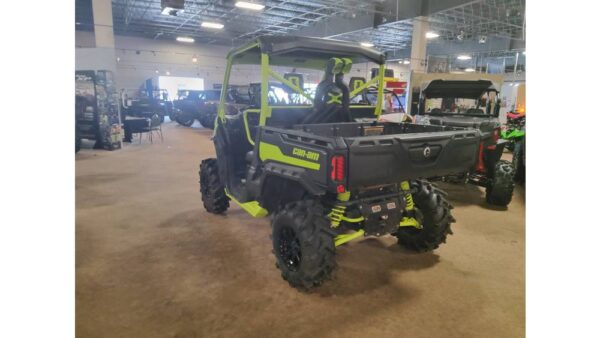

- Cargo Box Dimensions: 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
- Cargo Box Capacity: 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
- Tailgate Load Capacity: 250 lb (113.4 kg)

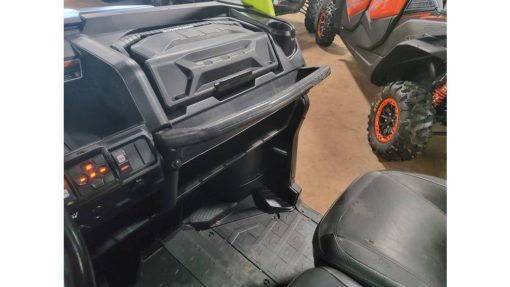

- Storage Capacity: Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
- Towing Capacity: 2,500 lb (1134 kg)
- Payload Capacity: 1,500 lb (680 kg)
- Fuel Capacity: 10.6 gal (40 L)
- Person Capacity: 3
Features

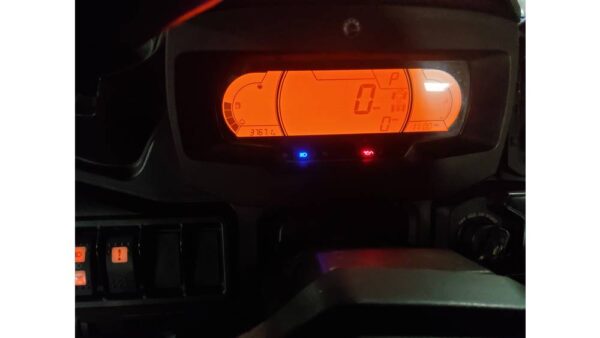

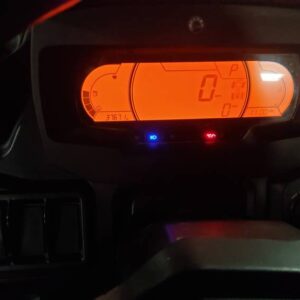

- Gauge: 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
- Battery: 12-V (30 amp/h)
- Magneto: 650-W
- Instrumentation: Two lighter type DC outlets, one in the console (20-A) and one in the under dash storage (20-A)
- Lighting: 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights

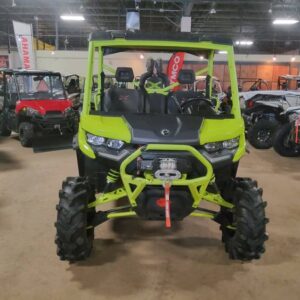

- Winch: Relocated 4,500-lb (2,041 kg) winch with synthetic rope and roller fairlead

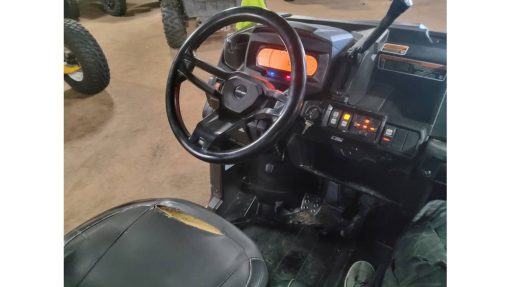

- Seat: VERSA-PRO bolster bench seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
- Steering Wheel: Adjustable tilt steering
- Protection: Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
- Hitch Type: 2-in hitch receiver
Warranty
- Factory: 1-year BRP limited warranty
- Extended Service Terms: B.E.S.T. terms available for up to 30 months
